JIAJUPAI Metal Texture Anti-Collision Wallboard is independently developed and manufactured by JIAJUPAI, a professional manufacturer in China, with its standardized factory. The product uses high-density base materials (such as bamboo fiber and carbon crystal board) as its core, and through advanced processes such as hot pressing, lamination, and UV printing, it achieves visual effects such as aluminum alloy, stainless steel, brushed steel, and mirror metal on the surface, perfectly integrating decoration and protection, and resolving the contradiction between aesthetics and practicality in traditional wall materials.
As a professional manufacturer rooted in China, Jiajupai is committed to providing high-quality wall panel solutions for home and commercial space decoration. Leveraging professional supplier services and a mature factory production system, it offers a full range of specifications and customization services to meet the diverse needs of global customers, making it the preferred choice for spaces seeking high quality and high safety.
| Width | mainly 1220mm, |
| Length | Include 2.44 meters, 2.6 meters, 2.8 meters, 3 meters, 3.2 meters, and 3.5 meters, meet most space requirements to reduce extra splicing |
| Customized Capability | The length can be upto 3.5 meters, and the height can usually be customized to within 4 meters to accommodate different heights and irregular designs |
| Thickness |
7mm、7.5mm、8mm、9mm、10mm、12mm,etc. 7mm thickness for ordinary wall decoration; 10mm thickness used in densely populated areas that require higher strength and impact resistance, such as public spaces |
| Impact strength |
Impact strength ≥ 15 kJ/m ² Tested to reach 2.8-3.2 J (30kg weight 1.5m free fall) |
| Formaldehyde emission | ≤ 0.025 mg/m ³ (ENF grade)Tested at 0.018 mg/m ³, infants and young children can directly come into contact with it |
| Fire rating | GB 8624-2012 Grade AAdd inorganic flame retardant, no melt droplets, non combustible |
| Antibacterial rate |
≥ 99.9% According to SGS testing, the inhibition rate of Escherichia coli and Staphylococcus aureus is ≥ 99.95% |
| Wipe resistant | 75% alcohol wipe ≥ 1000 times, No fading, delamination, or microbial residue on the surface |
| Dimensional stability |
linear expansion coefficient ≤ 0.5 mm/m ·℃ Deformation rate after soaking in water for 24 hours ＜ 0.1% |
1.Easy Installation, Impact Resistant
The Metal Texture Anti-Collision Wallboard uses high-density solid material and a grooved splicing design, allowing direct installation on bare walls for efficient construction. The co-extruded layer reinforcement design enhances impact resistance, making it suitable for high-traffic commercial spaces such as billiard halls, gyms, KTVs, and exhibition halls.
2.Lightweight and High-Strength
Compared to traditional stainless steel panels, it is lighter, facilitating transportation and installation while ensuring sufficient structural strength, reducing building load and saving construction costs.
3.Fire and Moisture Resistance
The base material undergoes special treatment, achieving Class A fire resistance and excellent moisture resistance, making it safe for use in damp environments such as kitchens and bathrooms, preventing mold and deformation.

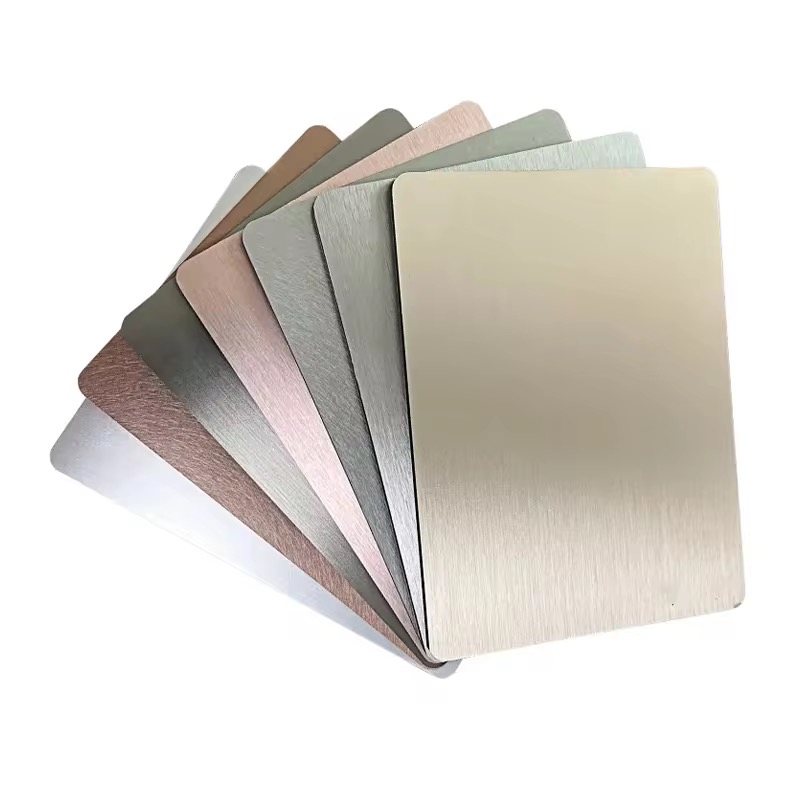

It can simulate various metallic effects such as brushed aluminum, mirror stainless steel, and chrome plating, offering realistic textures and a bright luster. It complements modern minimalist, industrial, and light luxury design styles, enhancing the technological feel and sophistication of a space.
5.Environmentally Friendly and Durable
The Metal Texture Anti-Collision Wallboard uses PUR hot melt adhesive or UV coating technology, resulting in low VOC emissions and meeting ENF environmental standards. It is non-toxic and harmless; it is resistant to fading, corrosion, and deformation, has a long service life, and is a green and environmentally friendly decorative material.
1. Pay attention to material density: High-density substrate is crucial for ensuring the stability and load-bearing capacity of the wallboard. Request relevant test reports from the supplier during procurement.
2. Prioritize PUR hot melt adhesive products: Although slightly more expensive, their stability, durability, and environmental friendliness are far superior to cold-applied adhesive products, avoiding issues such as delamination and fading.
3. Focus on surface treatment processes: For a high degree of metallic texture reproduction, it is recommended to choose products with UV inkjet printing or heat transfer printing processes.
4. Verify Environmental Certification: Confirm that the product meets the ENF formaldehyde emission standard and request the manufacturer to provide a formal test report.
5. Pay Attention to Installation Method: The grooved splicing design can improve construction efficiency and reduce labor costs. Consult the supplier for specific construction procedures and matching accessories.
6. Emphasize Surface Finishing: High-quality surface treatment can improve the wall panel's wear resistance and stain resistance. Check the surface flatness and texture during procurement.

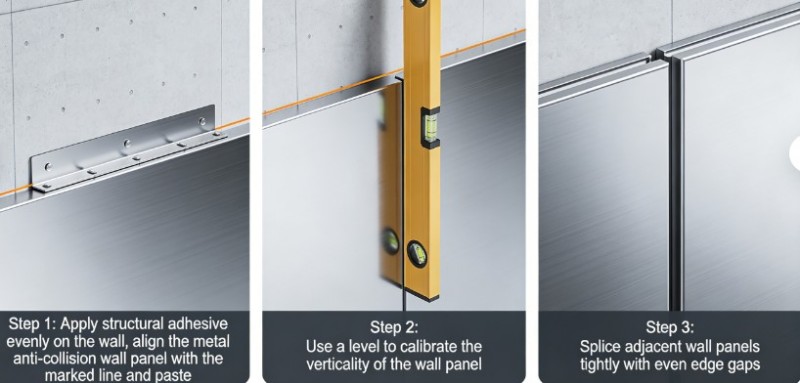

Metal Texture Anti-Collision Wallboard typically uses structural adhesive. Apply straight adhesive to the edges and W-shaped adhesive to the center to ensure a firm bond. Use a level during installation to avoid tilting. It can be directly installed on unfinished walls, making construction simple, quick, and shortening the construction period.
Use metal I-shaped strips or corner trims to finish the corners for a neater and more aesthetically pleasing finish. When connecting with glass or mirrors, leave a 1-2mm gap to avoid vertical deviation that could lead to installation failure. Jiajupai provides professional installation guidance and matching accessories. The factory can provide customized solutions based on customers' actual installation needs.
As a professional manufacturer and supplier of Metal Texture Anti-Collision Wallboard in China, Jiajupai possesses standardized production facilities and a comprehensive quality control system, ensuring consistent product quality. We are committed to providing customers with high-quality products and attentive after-sales service. From product customization and production to delivery and installation guidance, we address customer needs throughout the entire process. Adhering to the philosophy of "Quality First, Customer Supreme," we strive to become a trusted brand in the domestic and international decorative wall panel industry.
