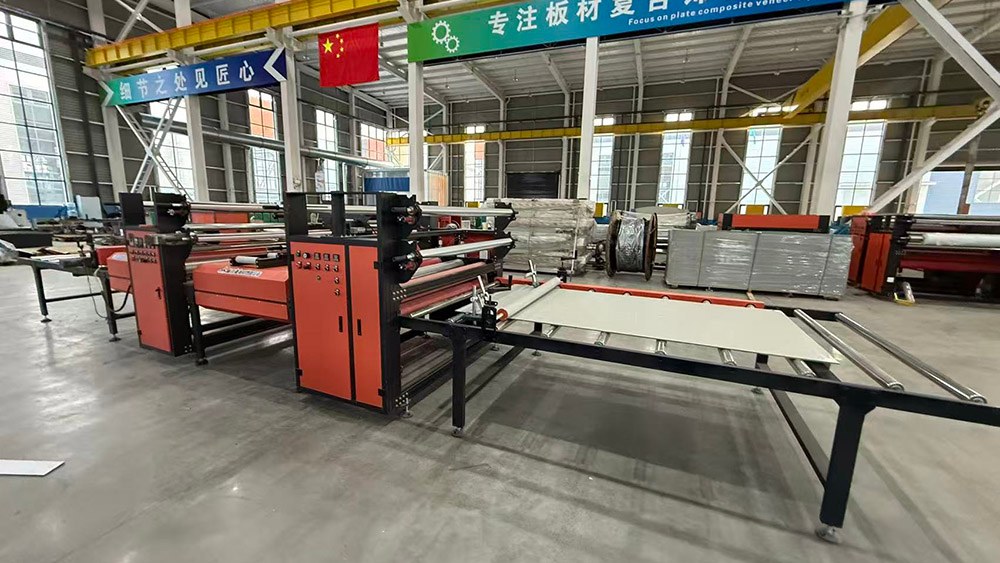

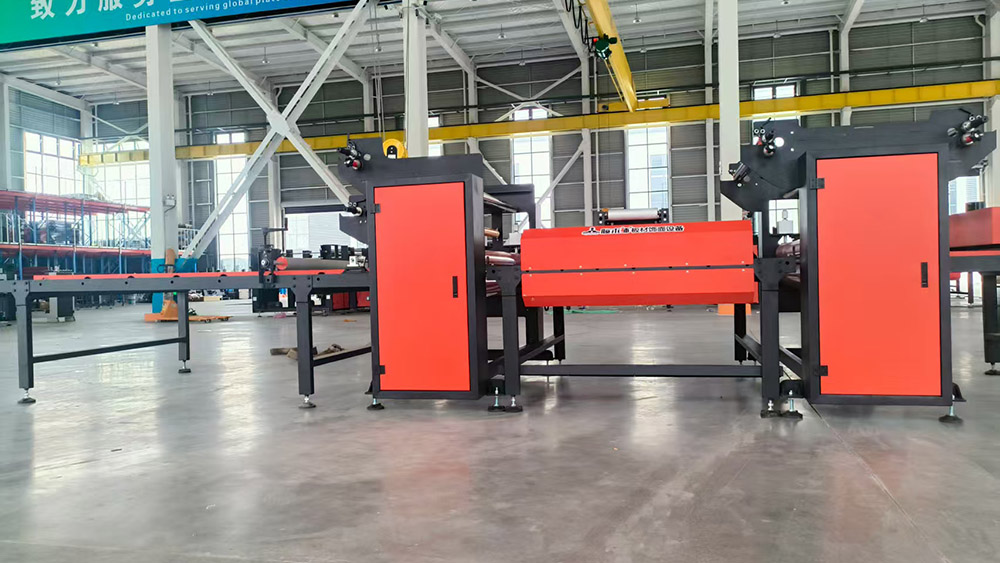

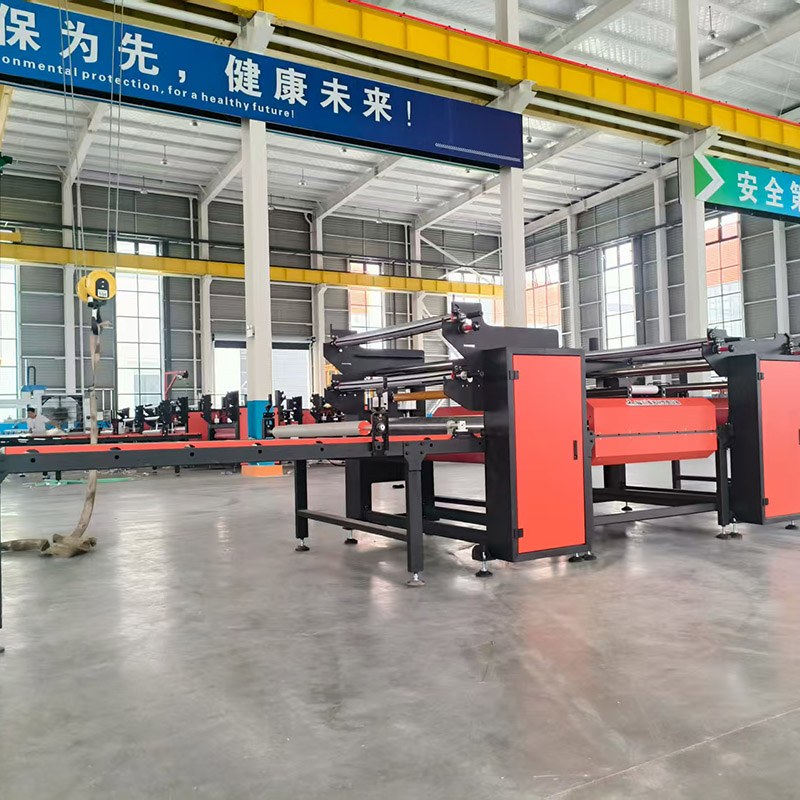

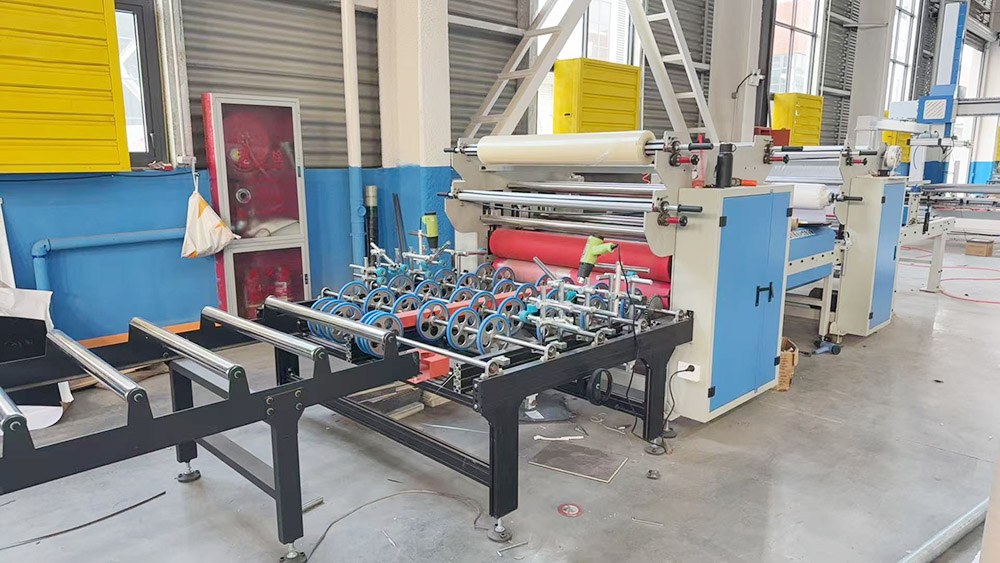

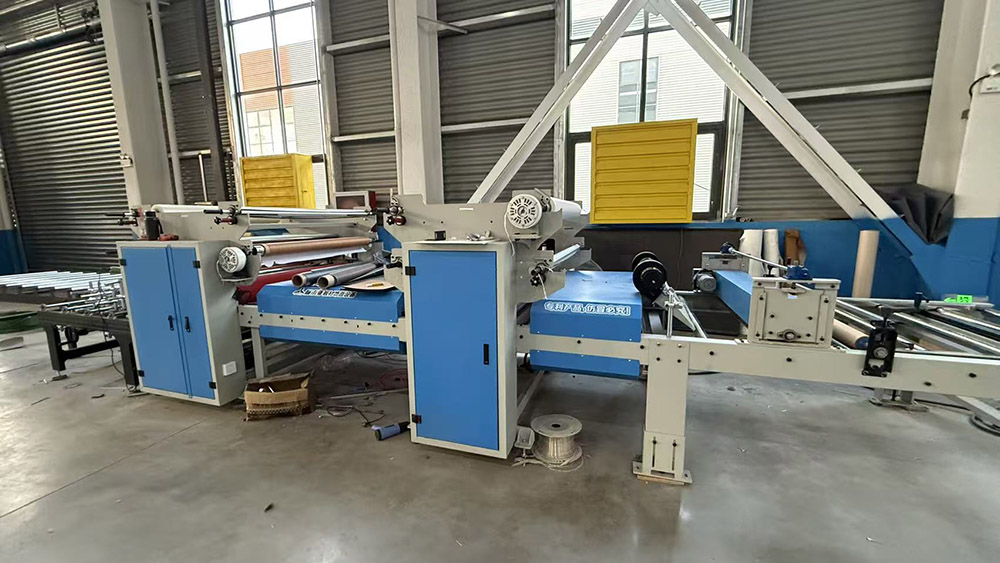

Featuring a reinforced frame structure made of steel plate and square steel tubing, the PVC Film Laminating Machine for WPC Wallboard offers stable operation, broad material compatibility, and significant labor and time savings. It effectively resolves common industry issues associated with traditional laminating equipment, such as uneven heating, surface blistering, low production efficiency, and cumbersome film changes. Backed by an integrated production capability combining proprietary adhesive films and machinery, along with a comprehensive after-sales network and long-term warranty, this equipment is highly acclaimed by panel manufacturers worldwide. It is the premier choice for professional suppliers seeking to create high-end finishes on WPC wallboards and achieve large-scale production.
1.Equipment Dimensions: 9000mm (L) × 2100mm (W) × 2100mm (H); optimized layout balancing large-panel processing needs with efficient workshop space utilization.
2.Rated Power & Voltage: 35kW–40kW, AC380V/50Hz; compliant with domestic industrial power standards, ensuring stable output without voltage fluctuation issues.
3. Net Weight: Approx. 1000kg; lightweight yet high-strength design facilitates installation, commissioning, and workshop layout adjustments.
4. Structural Design: Integrated welded construction combining cut steel plates and a square steel frame; offers high rigidity, deformation resistance, and durability for long-term, high-frequency industrial operation.
1.Dual-Roller Thermal Transfer Unit (1 set)
Ensures uniform heat transfer of the adhesive film and secure initial bonding between the film and substrate, laying a solid foundation for lamination.
2.Three-Roller Lamination Press Unit (1 set)
Performs precise secondary pressing to completely eliminate air bubbles and wrinkles, ensuring a smooth, flawless laminated surface.
3.Anti-Deformation Heating Tunnel (1 set)
Features uniform, constant-temperature heating to prevent thermal deformation of the substrate during lamination, ensuring consistent flatness for large-format WPC wall panels.
4.Rewinding Unit (1 set)
Automatically handles scrap rewinding and finished product organization, reducing manual intervention and enhancing production continuity.
5.Auxiliary Heating Fans (2 sets)
Assist the heating tunnel in achieving uniform temperature rise and balancing internal temperatures, preventing localized overheating or insufficient heating.
6.Drive Systems (2 sets)
Provide stable power transmission for the entire machine, ensuring synchronized operation of all functional units and eliminating equipment vibration or lamination misalignment.
7.Loading Hoists (2 units)
Enable automatic mechanical loading of roll materials, replacing manual handling to save labor and improve safety and efficiency.
8.Synchronous Drive Platform (1 set)
Precisely matches substrate transport speed with lamination speed, achieving error-free dynamic bonding.
1. Compatible with Laminating Roll Materials
Perfectly laminates various flexible roll materials—such as PVC, PET, fire-resistant laminates, aluminum foil, leather, fabric, and paper—enabling personalized surface finishing for diverse wall panel styles.
2.Compatible with Substrate Panels
Suitable for a wide range of decorative panels, including WPC bamboo-wood fiber boards, MDF, particleboard, OSB, plywood, solid wood boards, PVC foam boards, aluminum honeycomb panels, magnesium oxide boards, calcium silicate boards, and metal sheets; it is particularly well-suited for the large-scale surface finishing of WPC wall panels.
Compared to traditional single-function laminating equipment, the JIAJUPAI PVC Film Laminating Machine for WPC WallBoard offers unique advantages in technology, service, efficiency, and stability, effectively reducing production costs and enhancing market competitiveness.
1.Integrated Industry Chain Advantage
One of the few manufacturers in the industry that independently produces both the laminating equipment and the matching adhesive films. This ensures precise compatibility between equipment and consumables, eliminates brand mismatch issues, and simplifies after-sales support and maintenance.
2. Premium Warranty and After-Sales System
The machine comes with a two-year full-unit warranty. Throughout the lifecycle of the equipment and film, customers receive free lifetime maintenance guidance and troubleshooting services for non-man-made damage, significantly lowering equipment maintenance costs and operational risks.
3. High Efficiency (Labor and Time Savings)
Capable of processing three rolls of film simultaneously, the machine eliminates the frequent downtime for film changes required by traditional single-film equipment. This drastically saves manual labor time, boosts continuous mass production efficiency, and reduces labor costs.
4. Superior and Consistent Lamination Quality
Equipped with an extended heating roller structure, it achieves uniform, constant-temperature heating on both sides of large-format WPC wall panels. Compared to standard short-roller equipment, the temperature distribution is more balanced and the lamination process smoother, resulting in finished products free from defects like bubbles, wrinkles, or uneven adhesion, and ensuring a higher yield rate.
Q1: Which WPC wall panels is this PVC Film Laminating Machine compatible with? Can it handle personalized pattern lamination?
A1: The equipment is specifically optimized for a full range of WPC wall panels—including bamboo-wood fiber, PVC foam, and WPC integrated panels—and is compatible with various PVC films, PET films, and textured leather rolls. It perfectly reproduces wood grain, stone patterns, solid colors, and custom designs, fully meeting personalized customization needs for both residential and commercial projects.
Q2: Is the equipment difficult to operate? Does it require professional technicians?
A2: The equipment features an integrated, fully automatic control system with a simple operational logic and a user-friendly interface. After brief training, general workers can independently handle the entire process—including loading, parameter adjustment, lamination, and winding—without the need for on-site professional technicians. Additionally, the system automatically calibrates temperature and drive parameters, effectively preventing defects caused by human error.
Q3: What is the routine maintenance schedule for the PVC Film Laminating Machine for WPC Wallboards? How is long-term, stable production ensured?
A3: Routine maintenance is simple and cost-effective. Daily tasks involve only cleaning the heating rollers and drive platform, while monthly maintenance requires checking the drive and fan assemblies and lubricating moving parts. We provide a comprehensive maintenance manual and free technical guidance. The equipment utilizes a high-strength modular structure designed for low wear and a long service life; when used with our proprietary compatible films, it effectively avoids compatibility issues, ensuring stable, long-term mass production.
